Windows Azure Pack Roadmap and Future Support

Microsoft has recently published their vision and plans for the future of Windows Azure Pack. This document called as “Windows Azure Pack Roadmap and Future Support” and must be taken into consideration by any service providers who has datacenters based on WAP and related components (SC, Windows Server).

You can download the full version of roadmap here.

Here I’m just citing the most important quotations:

Product support for WAP and the current version of System Center will continue to be available until the end of 2022. Table 1 summarizes the product support lifecycle for the main components in a WAP cloud deployment.

windows azure pack support

Microsoft Azure Stack brings Azure to service provider datacenters so that they can accelerate time to market and expand the addressable market for their services portfolio. Application developers can maximize their productivity using a ‘write once, deploy to Azure or Azure Stack’ approach. Microsoft Azure Stack will be launching in the fourth quarter of calendar year 2016

Service Providers should continue to use Windows Server Hyper-V for highly virtualized environments (for example, virtualizing their most demanding workloads) along with Windows Azure Pack and System Center for management. More importantly, they should sell and support what is available today that end customers understand and ask for, and then prepare for future evolution of technologies.

Related Links

Windows Azure Pack: How to add and troubleshoot VM Clouds

Hi, folks!

Finally, this is the third and last part of series of posts related with Windows Azure Pack (WAP) and VMM Clouds. Previously we’ve described installation of Windows Azure Pack and Service Provider Foundation. Now it’s time to implement the first cloud service. No doubt the most popular service is VM Cloud. Let’s describe what is it and how to deploy one with WAP.

Requirements

Component Requirement Description
Service Provider Foundation Install and configure Service Provider Foundation The VM Clouds service in Windows Azure Pack uses Service Provider Foundation to communicate with VMM. So, before provisioning VM Clouds
Guide HOW TO
Windows Azure Pack Install and configure Windows Azure Pack Installation guide: Windows Azure Pack
Cloud In the underlying VMM server that is associated with the Service Provider Foundation endpoint, you must have created a cloud and it’s associated components such as VM Templates, Hardware Profiles, VM Networks, Gallery Items For clouds to work with Windows Azure Pack, you must ensure that the clouds are created with the following considerations:

  • You must create a cloud from host groups.
  • You must have already created logical networks that can be associated with the cloud
  • You must have already created a VM library share.
  • You must assign the right amount of capacity to the cloud. The capacity that you assign to the cloud governs the resources that will be available to the tenants while provisioning virtual machines using VM Clouds.
  • You must not select any of the available capability profiles (ESX Server, Hyper-V, XenServer) while creating the cloud. If you do so, tenants will not be able to deploy virtual machine roles using the VM Clouds service.

HOW-TO is described below

Service Provider Foundation service account The Service Provider Foundation service account must be added to the administrator user role in the VMM server See below
VMM RunAsAccount To successfully complete all steps in this mini-guide Create RunAsAccount in VMM and assign Administrator Role

Register SPF in Windows Azure Pack

  1. Log in to WAP admin portal (in my case, https://wapportal.domain.com:30091)

2.Click on VM Clouds and then “Register System Center Service Provider Foundation

wap_spf_1

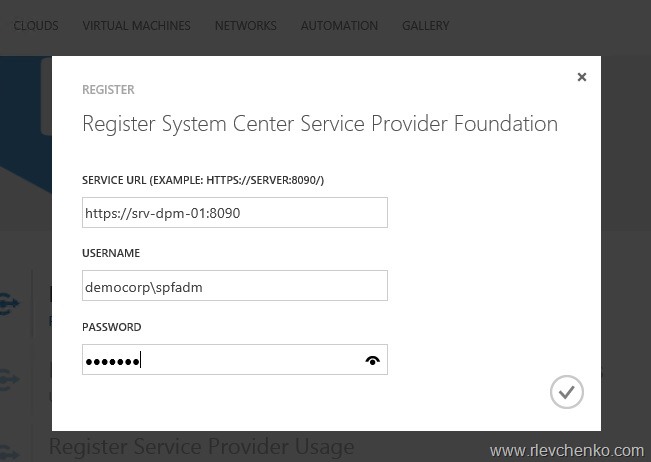

  1. Type URL for Service Provider and provide required credentials

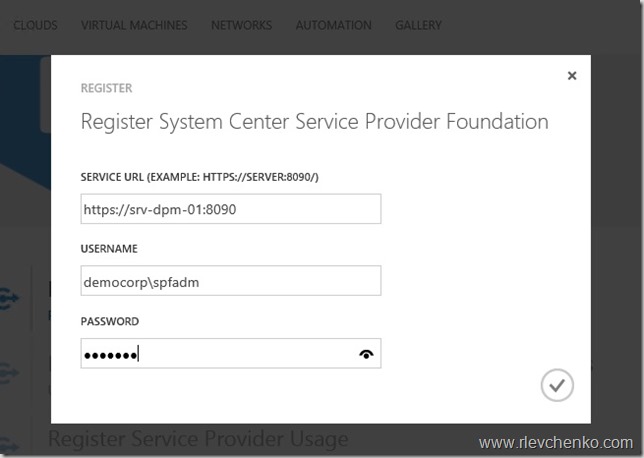

wap_spf_2

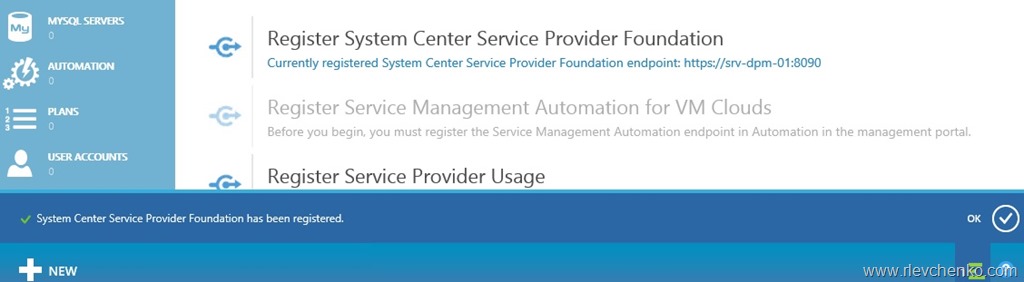

  1. Verify status of SPF registration. It should be the same as shown on the pic below

wap_spf_3

Add SPF Service Account as VMM administrator

  1. Log in to SPF Server, open IIS and note user identity for SPF Pools

spf_service_accouns_apppools_thumb

  1. Open VMM Console and connect to VMM

  2. Go to Security –> User Roles –> Administrator and add SPF Service account to this role

vmm_spf_admin_svc

or use PowerShell:

$UserRole = Get-SCUserRole -Name "Administrator"
Set-SCUserRole -UserRole $UserRole -AddMember Domain\SPFServiceAccount

Create VMM cloud

In this section we create BASIC VMM cloud only for demo purposes.You have to carefully plan/design your cloud components.

  1. Add hosts to host group (VMs and Services –> right click on host group name –> add hyper-v hosts and clusters“) or PS:
#In my case, host group called as All Hosts and 1 member hv01

$runAsAccount = Get-SCRunAsAccount -Name "Administrator"
$hostgroup =  Get-SCVMHostGroup -Name "All Hosts"
Add-SCVMHost -ComputerName "hv01.domain.com" -VMHostGroup $hostgroup -Credential $runAsAccount

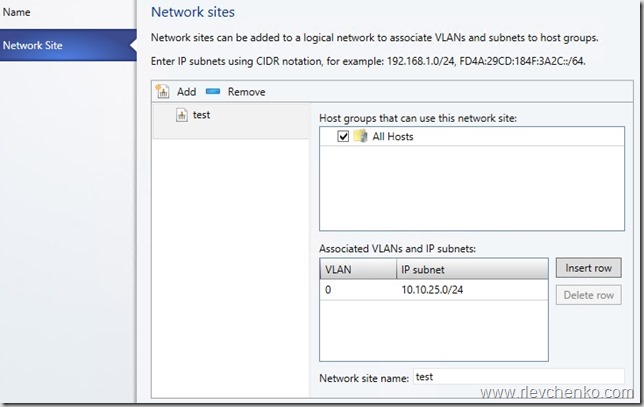

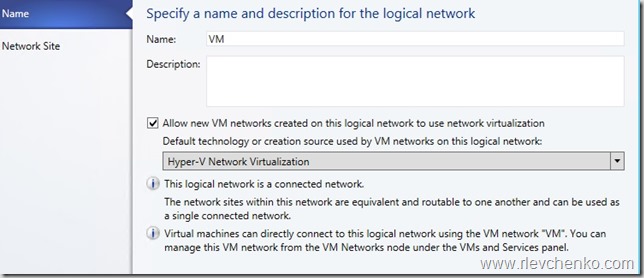

  1. Add Logical Network (Fabric –Logical Networks – Add Logical Network).
#Create new logical network
$LogicalNetwork=New-SCLogicalNetwork -Name VM -LogicalNetworkDefinitionIsolation $false -EnableNetworkVirtualization $true -UseGRE $true -IsPVLAN $false
$HostGroup =@()
#Get Host Group
$HostGroup += Get-SCVMHostGroup -Name "All Hosts"
#Add VLAN Subnet ID and IP with netmask
$SubnetVLAN = @()
$SubnetVLAN += New-SCSubnetVLAN -Subnet "10.10.25.0/24" -VLAN 0
#New Definition for logical network VM
New-SCLogicalNetworkDefinition -Name VM -LogicalNetwork $LogicalNetwork -VMHostGroup $HostGroup -SubnetVLAN $SubnetVLAN

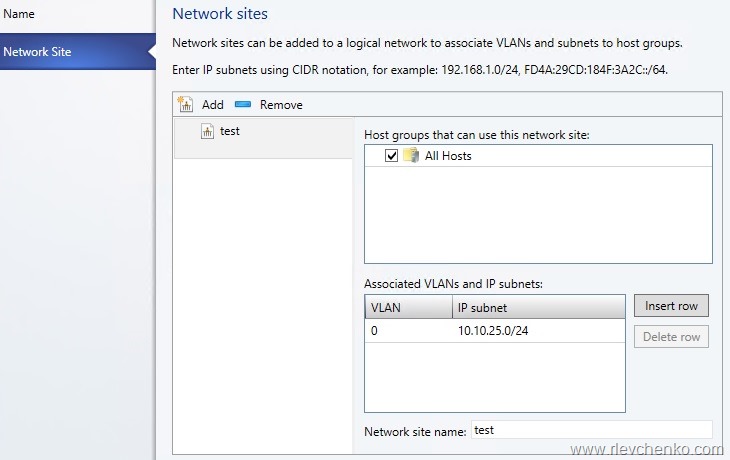

sc_vmm_logical_network_1

sc_vmm_logical_network_2

  1. Add Library server if it has not deployed yet (Library –> Library Servers –> Add Library Server)
#Get Library Servers
Get-SCLibraryServer


Copy sysprepped vhds to Library (highlight library and click “Import Physical Resource” button) or through PS:

Import-SCLibraryPhysicalResource -SourcePath "path to VHDs" -SharePath "\\libraryFQDN\foldername"

In my demo, I use clean 2012 R2 Std with the latest updates.

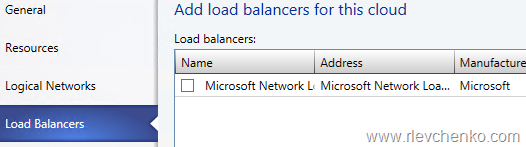

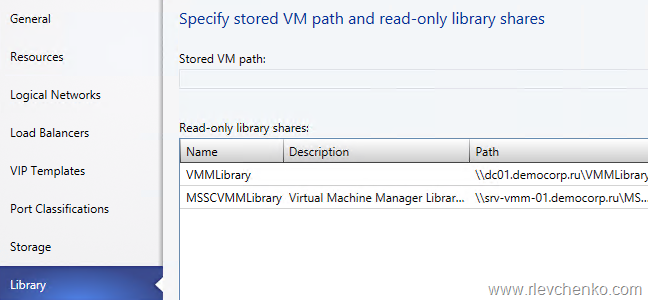

  1. Create new cloud (VMs and Services –> Clouds –> New Cloud). Pictures are clickable (see cloud properties from left to right)

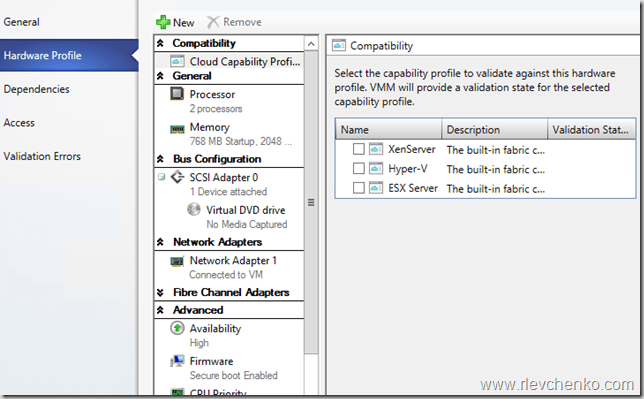

Do not forget:  You must not select any of the available capability profiles (ESX Server, Hyper-V, XenServer) while creating the cloud.

If you do so, tenants will not be able to deploy virtual machine roles using the VM Clouds service.

imageimage image


image image  image


image  image image

That’s it . Our demo cloud is ready. But it’s not enough.

Now we need to create VM templates.

Create VM Templates

1.  Add hardware profiles (Library –> Profiles –> right click –> Create Hardware Profiles). I have one pre-created profile with the following properties:


Create a few profiles for different VM configurations, if it is necessary.

  1. Go to Virtual Templates – right click and “Create VM Template” , use your sysprepped vhd as a source for VM template


Specify Template Name, Generation ID and choose Hardware Profile (it is not required but let’s do it Улыбка).

OS configuration page (my future VMs will be based on 2012 R2 Standard, so you have to verify that the right Operating System is specified):


The next step is VMM registration on WAP portal.

Register VMM in WAP

  1. Log in to admin management portal (https://wapportal.domain.com:30091)

  2. Go to VM Clouds –> Clouds and click on “Use an existing virtual machine cloud…”

wap_spf_cloud_1

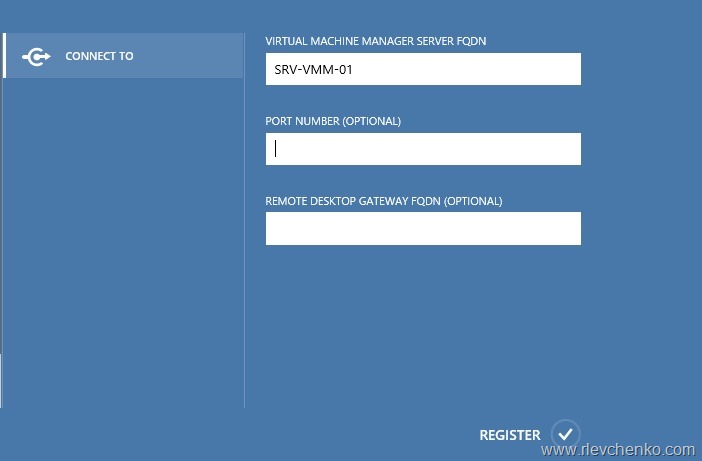

  1. Type VMM server name and Register

wap_spf_cloud_2

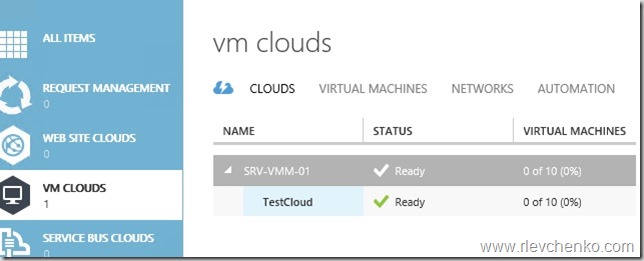

  1. OMG! Look at this…it is my cloud Улыбка

wap_spf_cloud_3

Create WAP Hosting Plan

  1. Go to Plans and click on “Create a new hosting plan”

wap_spf_cloud_4

  1. Devise friendly name for you plan

wap_spf_cloud_5

  1. We want to provide VM Clouds

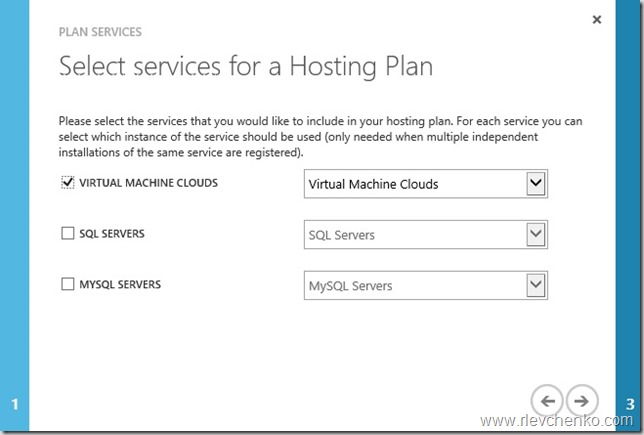

wap_spf_cloud_6

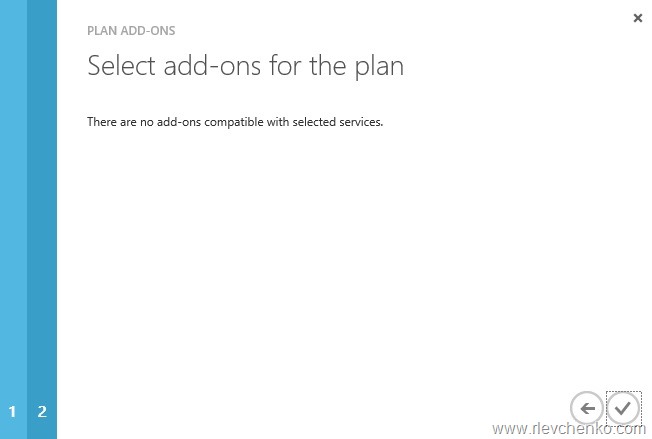

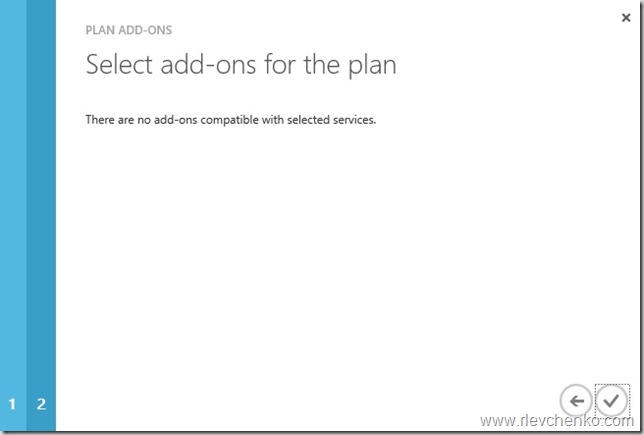

  1. Just click next

wap_spf_cloud_7

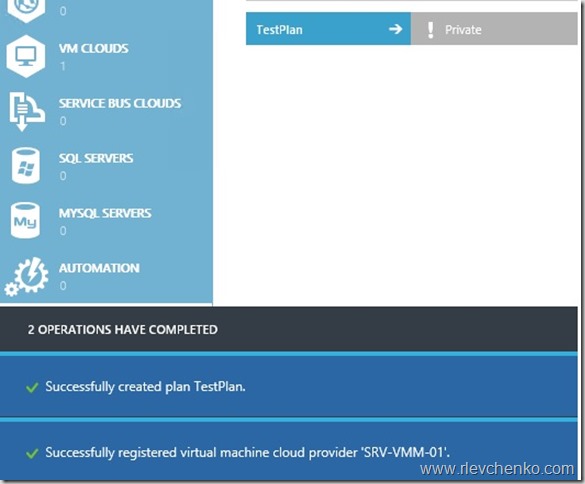

5.Our demo plan is created. Verify that status is green.

wap_spf_cloud_8

  1. Open newly created plan and go to “virtual machine clouds” service

wap_spf_cloud_9

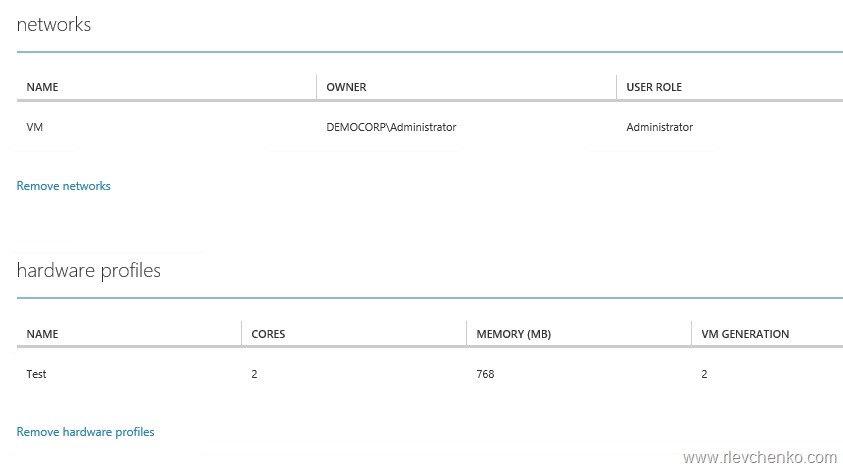

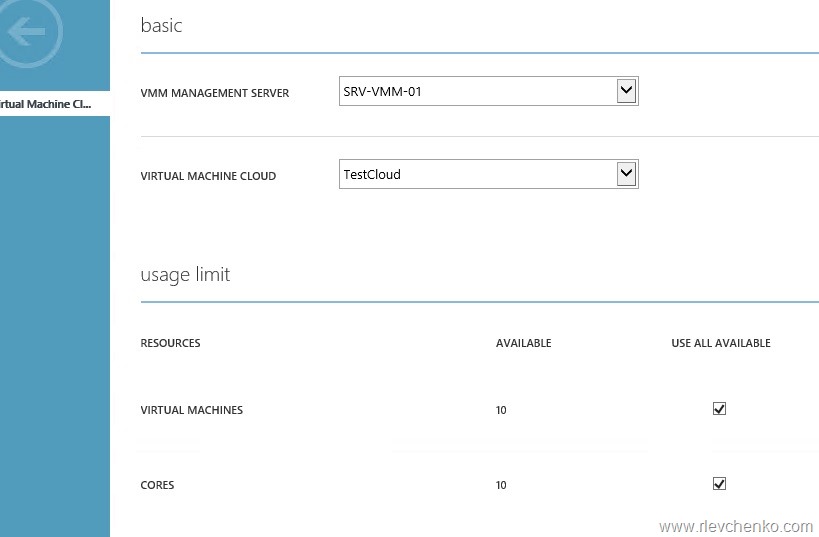

7.Review and change properties (add virtual network, hardware profiles, vm templates) for service

wap_spf_cloud_10 wap_spf_cloud_11wap_spf_cloud_12wap_spf_cloud_13

Thanks to gallery items we have options to create workloads  (Exchange, Lync,SQL and etc) from gallery (just like in Azure). I will describe it my next posts.

Create new user account for WAP

Finally, we have to create user and map him to our plan with VM clouds service

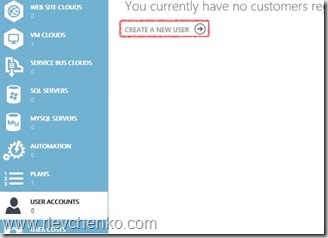

Go to User Accounts and click on “Create a new user”

wap_spf_cloud_14

Type mail for example, password and choose plan. Click on Create

wap_spf_cloud_15

Our demo user (tenant) is created. Now you can access client management portal using this email address and password.

Create demo VM under tenant account

Open in IE https://wapportalfqdn:30081 and sign-in as tenant, then click on Virtual Machines

Standalone –> Quick Create –> choose template, type Name of VM and admin’s password and click on “Create VM Instance

wap_vm_creation_1

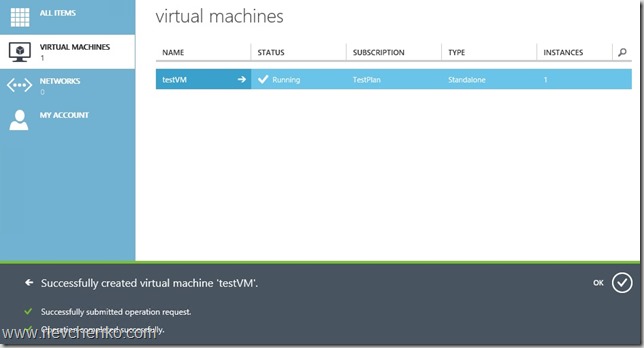

Woohooo!  As you can see out tenant successfully created testVM and VM is running.

wap_vm_creation_final

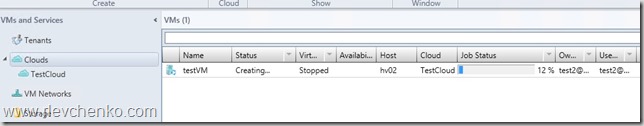

From VMM side (vm creation progress):

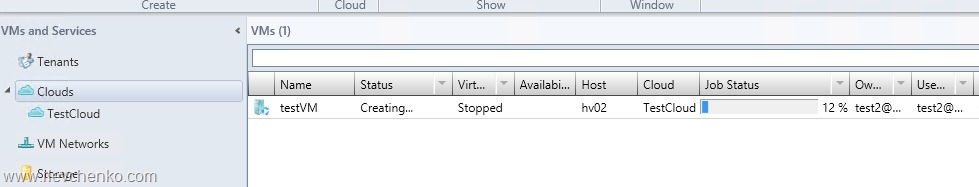

wap_cloud_vm_creation_1

User tenants (VMM side):

wap_vmm_user_tenants

How to troubleshoot WAP,SPF,VMM

WAP Troubleshooting:

A ton of information you can find here:

https://technet.microsoft.com/en-us/library/dn554311.aspx

My favorite steps:


Additional links:
