Hi, folks!

This is the second part of series of posts related with Windows Azure Pack (WAP) and VMM Clouds.

Article 1 : SPF installation

Article 2 : WAP and its optional resources (you are here)

Article 3: WAP+VM Cloud Service

Microsoft uses the following description of Windows Azure Pack (WAP):

Windows Azure Pack for Windows Server is a collection of Windows Azure technologies, available to Microsoft customers at no additional cost for installation into your data center. It runs on top of Windows Server 2012 R2 and System Center 2012 R2 and, through the use of the Windows Azure technologies, enables you to offer a rich, self-service, multi-tenant cloud, consistent with the public Windows Azure experience.

Windows Azure Pack includes the following capabilities:

WAP:

  • Management portal for tenants – a customizable self-service portal for provisioning, monitoring, and managing services such as Web Site Clouds, Virtual Machine Clouds, and Service Bus Clouds.
  • Management portal for administrators – a portal for administrators to configure and manage resource clouds, user accounts, and tenant offers, quotas, and pricing.
  • Authentication sites – these sites provide authentication services for the management portal for administrators and the management portal for tenants.  Windows Authentication + ADFS for Admins Sites and ASP.NET provider for tenants
  • Service management API – a REST API that helps enable a range of integration scenarios including custom portal and billing systems.

Optional Resources:

  • Web Site Clouds – a service that helps provide a high-density, scalable shared web hosting platform for ASP.NET, PHP, and Node.js web applications. The Web Site Clouds service includes a customizable web application gallery of open source web applications and integration with source control systems for custom-developed web sites and applications.
  • Virtual Machine Clouds – a service that provides infrastructure-as-a-service (IaaS) capabilities for Windows and Linux virtual machines. The Virtual Machine Clouds service includes a VM template gallery, scaling options, and virtual networking capabilities.
  • Service Bus Clouds – a service that provides reliable messaging services between distributed applications. The Service Bus Clouds service includes queued and topic-based publish/subscribe capabilities.
  • SQL and MySQL – services that provide database instances. These databases can be used in conjunction with the Web Sites service.
  • Automation – the capability to automate and integrate additional custom services into the services framework, including a runbook editor and execution environment.
  • Optional resource = what you are going to connect with WAP (for example, VMM cloud).
  • Required components = Windows Azure Pack components which you install on one machine (express) or on multiple machines (distributed)

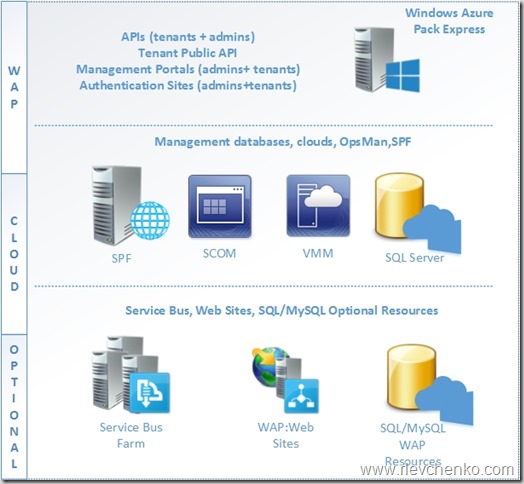

In other words, WAP is interface between your resources and tenants=clients. It’s a great solution for all client-oriented company and to start providing cloud resources to customers without any additional cost. On the following picture you can see the main components of WAP , cloud components and optional resources. WAP can be deployed in 2 different ways – express and distributed. In the express deployment you install all WAP components on one machine and it’s recommended only for test or demo environments. If you want to have WAP in your production , you should use distributed deployment . In such a deployment, WAP required and optional components are installed on multiple machines.

Windows Azure Pack Scheme

We’ll go through the step-by-step WAP Express installation

Required VM

1 VM (2012/2012R2, 8 Gb static RAM, at least 40 GB hard disk space, 2 vCPU, internet connection) for Windows Azure Pack Components

1 VM (2012/2012R2)  for SQL Server 2012 SP1

Required software for WAP

  • Microsoft .NET Framework 3.5 SP 1
Install-WindowsFeature -name NET-Framework-Core -source <drive>:\sources\sxs
  • .NET 4.5 Extended (WAP Wizard installs automatically)
  • IIS recommended configuration (WAP wizard installs automatically)
  • Download WAP_SingleMachineInstallation (only for express deployment) and place exe on WAP VM
  • Download Windows Web Platform (can be used for distributed and express deployments as well)
  • Turn off Internet Explorer Enhanced Security for administrators (server manager –> local server)

Deployment steps

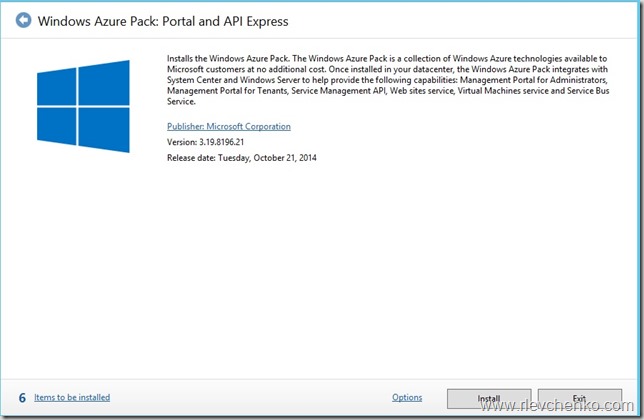

1. On the VM for WAP run downloaded WAP_SingleMachineInstallation.exe

Windows Azure Pack Installation

2. Click to “Items to be installed” , verify items to be installed and click Close

Windows Azure Pack Installation

3. Accept license terms

Windows Azure Pack Installation

4. Use Microsoft Update when I check for updates – YES, click Continue

Windows Azure Pack Installation

5.Wait while wizard downloads and installs all required WAP components

Windows Azure Pack Installation

6.Click on “Continue

Windows Azure Pack Installation

7.Click Finish

Windows Azure Pack Installation

8. On the opened page in the IE (https://wapportal:30101) define  SQL Server name, type of authentication and passphrase for Configuration Store

Windows Azure Pack Installation

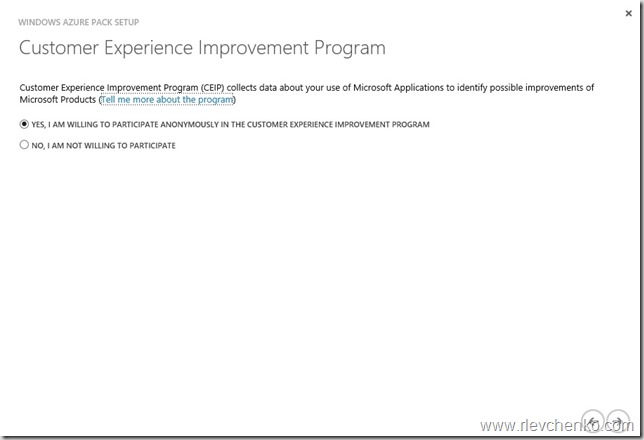

9.Yes, I am …

Windows Azure Pack Installation

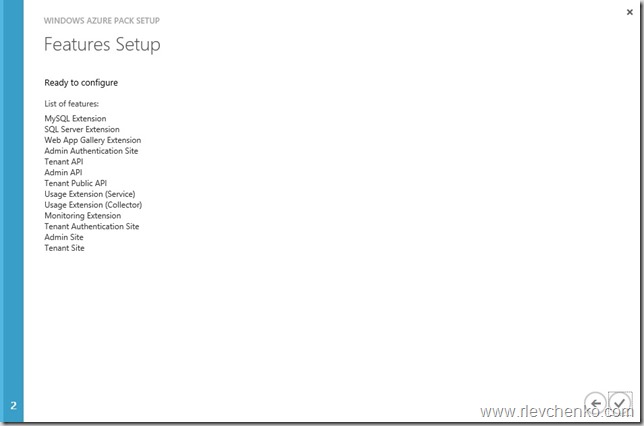

10. Configure all features

Windows Azure Pack Installation

11. Wait while wizard completes configuration of features

Windows Azure Pack Installation

12. Verify IIS sites (win+r –> intemgr), MgmtSvc-… are WAP’s sites.

Windows Azure Pack IIS sites

13. Add WAP admin+tenant sites to start screen (win+q –> type windows azure and pin to start)

Windows Azure Pack Start Screen

14. Go to WU and install the latest updates for WAP Components (UR4 for SC 2012 R2 is the latest for now)

15. If you open https://wapportal:30101 again, you should see that WAP is already configured

Windows Azure Pack Installation

In the next post we will describe configuration of Windows Azure Pack with VM Clouds and SPF and how to troubleshoot this configuration
