VMM supports local and remote storage (block or file storage). If VMM supports your storage (see “Supported Storage Arrays for System Center 2012 VMM”) you can add one in 4 clicks. Notice some storage devices doesn’t have embedded SMI-S provider. In that case , you need to implement additional “interface” ,called as proxy, between VMM Server and storage device

Typical usage scenarios for storage features in VMM:

• Assigning and adding storage to hosts or clusters
• Cluster creation
• Scale-Out File Server
• Rapid Provisioning

TIP:Do not install the SMI-S provider on the VMM management server. This configuration is not supported.

Please see technet article to get more information: http://technet.microsoft.com/en-us/library/gg610600.aspx

—

I have to add my storage (IBM  Storwize V3700) to VMM. This storage has embedded SMI-S provider , so we need to provide just IP address and account to access device. According with http://technet.microsoft.com/en-us/library/gg610563.aspx we also need to select the @Use Secure Sockets Layer (SSL) connection check box to enable HTTPS for communicating with the SMI-S CIMXML provider. As you see, this option is greyed out for both protocols SMS-S WMI (it is normal) and SMI-S CIMXML.

Resolution: uninstall KB2840632 and KB2833958

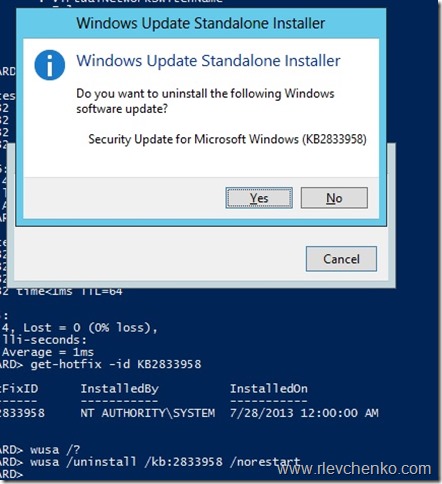

wusa /uninstall /kb:2833958 /norestart
wusa /uninstall /kb:2840632 /norestart

Restart you server and open VMM console. Use SSL option is active now!

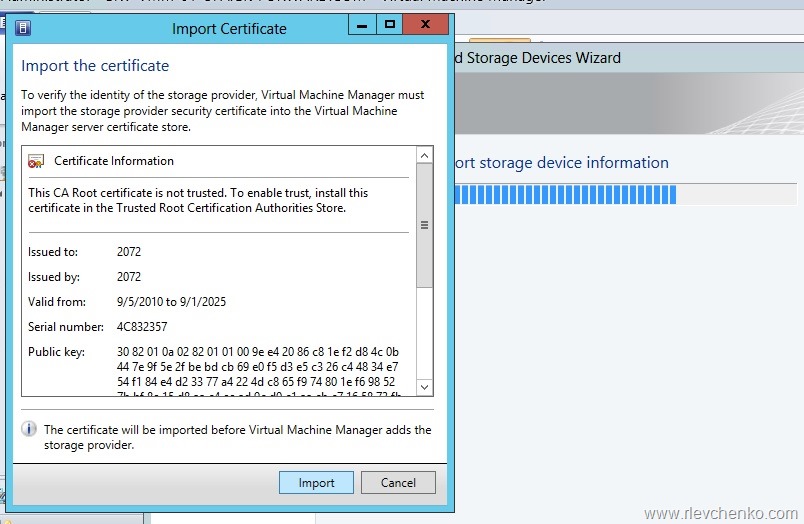

Click Next , Import certificate

Click Next

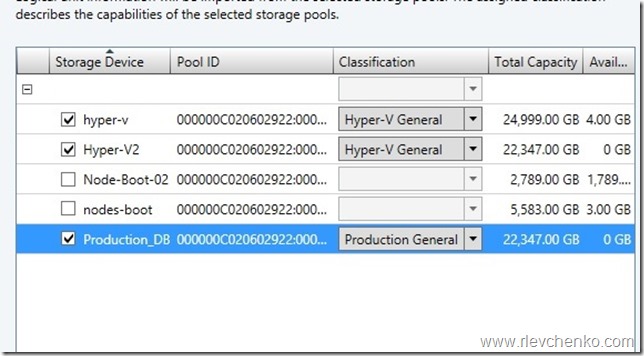

Select your LUNs and create classification for them

Verify that running jobs completed without any errors

That’s all!
