Azure DevOps: Update service connection expired secret

If you’re reading this post, you’re trying to find a way to edit an existing service connection with a new service principal secret/key.

It’s a weird that UI and devops cli don’t allow us to quickly change service connection details if it was created automatically by Azure DevOps (“creationMode”: “Automatic”; will talk about it a bit later).

So, how to change a secret? Answer: Azure DevOps REST API.

  • Create a new Personal Access Token (full access and all scope, expiration 1 day)
  • Go to Project Settings – Service Connections, choose your connection and click on Manage Service Principal. Add a new secret and note it’s value.
  • Choose a tool to work with REST API. It could be either PowerShell or Postman, for instance. I will show both.
  • [Postman] Install Postman and create a new HTTP Request

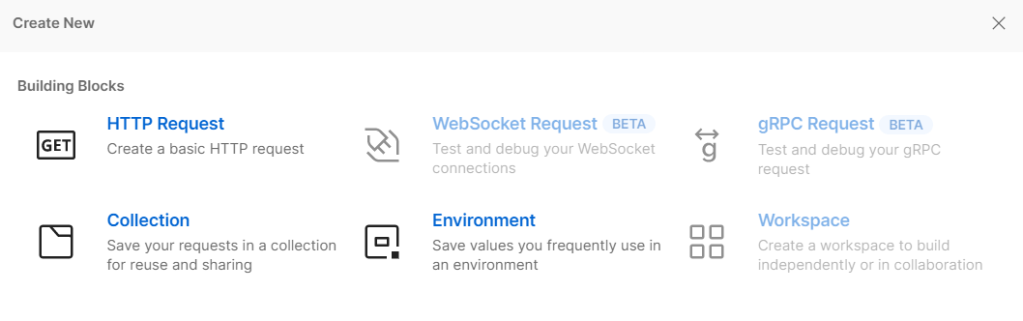

Postman – File – New – HTTP Request
  • [Postman] Go to Authorization and paste PAT token to the password field
PAT token should be used as password for any REST API requests
  • [Postman] Using the following GET request, get a service endpoint details in JSON format. Organization Name, Project Name and Endpoint Name are parts of the URI (can be taken from service connections list in the azure devops ui) :

    https://dev.azure.com/<orgName>/<ProjectName>/_apis/serviceendpoint/endpoints?endpointNames=<Endpoint Name> &api-version=6.0-preview.4
  • [Postman] Copy everything from the response under the value as shown below
{
            "data": {
                "subscriptionId": "",
                "subscriptionName": "",
                "environment": "AzureCloud",
                "scopeLevel": "Subscription",
                "creationMode": "Automatic",
                "azureSpnRoleAssignmentId": ""
            },
            ...............
                }
            ]
}
  • [Postman] Using a PUT request update the service connection. Make sure you set Body – Raw to JSON , and then Paste JSON copied in the previous step to the Body
Body – RAW should be set to JSON
  • Here is a tricky part. Prior to sending PUT request, change creationMode from “Automatic” to “Manual”. Also, in my case, I had to delete the following parameters spnObjectId and appObjectId (data section). Plus, I added serviceprincipalkey with a value set to a new secret (authorization section)
    A short excerpt is provided below:
{
    "data": {
        "subscriptionId": "",
        "subscriptionName": "",
        "environment": "AzureCloud",
        "scopeLevel": "Subscription",
        "creationMode": "Manual",  # changed
        "azureSpnRoleAssignmentId": "",
        "azureSpnPermissions": ""
         spnObjectId # deleted
         appObjectId # deleted
    },
    "description": "",
    "authorization": {
        "parameters": {
            "tenantid": "",
            "serviceprincipalid": "",
            "authenticationType": "spnKey",
            "serviceprincipalkey": "secret here" # added
        },
        "scheme": "ServicePrincipal"
}
}
  • [Postman] URI used for a PUT request: https://dev.azure.com/OrganizationName/_apis/serviceendpoint/endpoints/EndpointId?api-version=6.0-preview.4
  • [Postman] Go back to Azure DevOps and make sure that service connections has been updated and ready to use.

  • [PowerShell] Use the following example
$token ="PAT Token"
$orgName = "Organization Name"
$projectName = "Project Name"
$endpointName = "your endpoint"
$endpointId = "your endpoint ID, use GET request or UI"
$header = @{Authorization = 'Basic ' + [Convert]::ToBase64String([Text.Encoding]::ASCII.GetBytes(":$($token)")) }

# Get Endpoint details

Invoke-RestMethod -Method GET -URI "https://dev.azure.com/$($orgName)/$($projectName)/_apis/serviceendpoint/endpoints?endpointNames=$($endpointName)&api-version=6.0-preview.4" -Headers $header -ContentType "application\json"

# Update Endpoint
$json = @{ json here } | ConvertTo-Json -Depth <your depth>
Invoke-RestMethod-Method PUT -URI "https://dev.azure.com/$($OrgName)/_apis/serviceendpoint/endpoints/$($endpointId)?api-version=6.0-preview.4" -Body -Headers $header -ContentType "application\json" -Body $json


That’s it. Now you know how to change a service connection with a new secret without removing a connection and customizing all pipelines in a project.

P.S. If you have Owners permissions on the app registration/service principal used by the connection, try to edit the connection by adding a description, and then click on Save. Azure DevOps should create a new secret and update the connection automatically.

Azure Kubernetes: ARM Template and Managed Identity

Managed identity is now available for Azure Kubernetes Service, so there is no longer need to manage your own service principals or rotate credentials often. Just execute “az aks create -g rgname -n clustername –enable-managed-identity” and the cluster is ready to go. The next option is using ARM template to configure AKS. There are multiple examples of ARM templates for deploying Kubernetes in Azure with advanced networking and etc. However, you can’t find any templates that use Managed Identity along with Azure Kubernetes Service. Plus, if you have resources outside of the MC_* resource group (it’s created automatically during the AKS deployment), you need to grant required permissions to cluster Managed Identity (new and recommended) or Service Principal, so AKS will be able to interact with such “external” resources (for example, read/write on subnets and etc.). Here is an example how you can reference the identity using ARM template:

                            "type": "Microsoft.Network/virtualNetworks/subnets/providers/roleAssignments",
                            "apiVersion": "2017-05-01",
                            "name": "[concat(variables('vnetName'), '/', variables('vnetSubnetName'),'/Microsoft.Authorization/', guid(resourceGroup().id, 'aksvnetaccesscluster'))]",
                            "properties": {
                                "roleDefinitionId": "[variables('networkContributorRole')]",
                                "principalId": "[reference(resourceId('Microsoft.ContainerService/managedClusters/', parameters('clusterResourceName')), '2020-03-01', 'Full').identity.principalId]",
                                "scope": "[variables('vnetSubnetId')]"
                            }
