Step-by-step CA migration


Hi all!

Today we are discussing CA migration from 2003 to 2008 R2.

It is also applicable to other versions of Windows Server.

Note: target and source names are not equal. CA name is the same during migration

Step 1. CA Databases and configuration back up

Log in to Windows Server 2003 , open Certification Authority and click on Back up CA..

ca_transfer_2003_to_2008_1

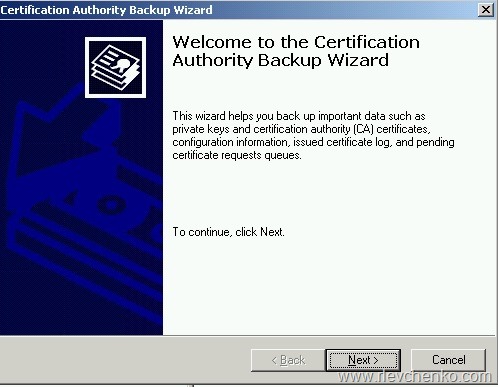

Review the wizard’s start page and click Next

ca_transfer_2003_to_2008_2

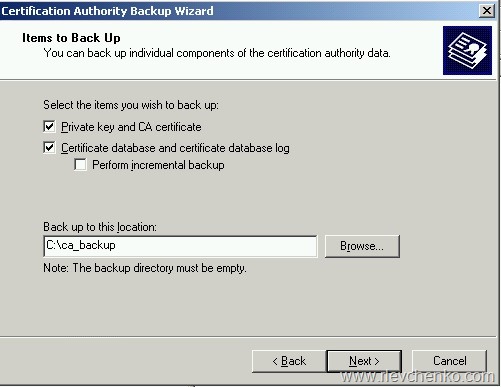

Click on check boxes Private key and CA certificate + Certificate database and certificate database log ,define location for backup files and click Next

ca_transfer_2003_to_2008_3

Type and remember password for the private key and click Next

ca_transfer_2003_to_2008_4

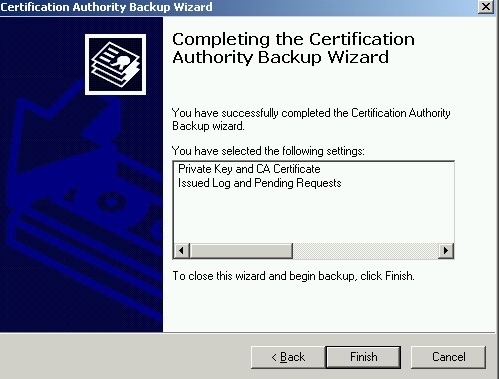

Review the results. click Finish

ca_transfer_2003_to_2008_5

Start – Run (win+r) – Regedit

Go to the path

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\CertSvc\

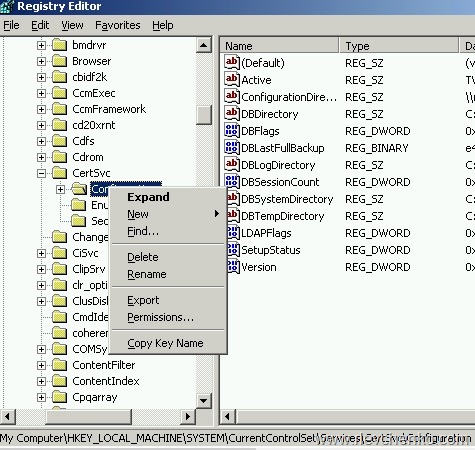

Right click on Configuration and  Export

ca_transfer_2003_to_2008_6

Define location for reg file and click Save

ca_transfer_2003_to_2008_7

Step 1 is complete. Now we have to delete CA services on the source server

Step 2. Removing CA services on the source server

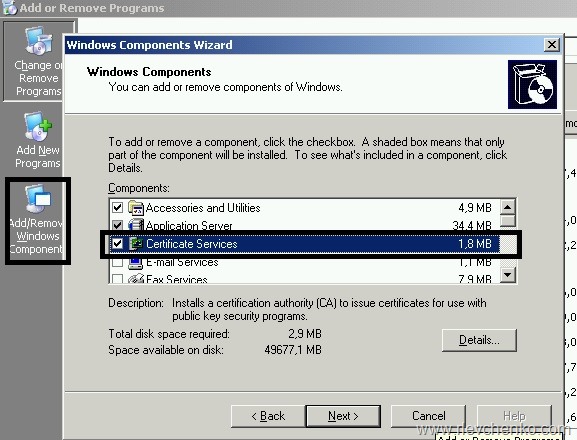

Go to Add or Remove Programs –> Add/Remove Windows Components , remove tick in “Certificate Services”, click Next

ca_transfer_2003_to_2008_8

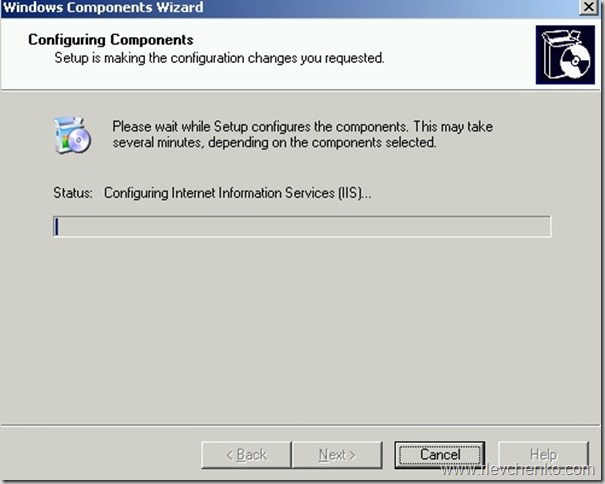

Wait..

ca_transfer_2003_to_2008_9

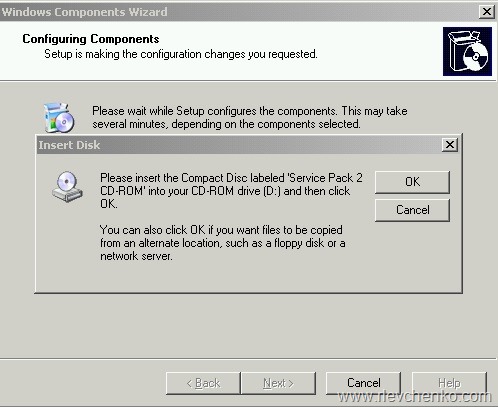

Sometime we need to insert the CD with 2003/SP2 for successful configuration

ca_transfer_2003_to_2008_10

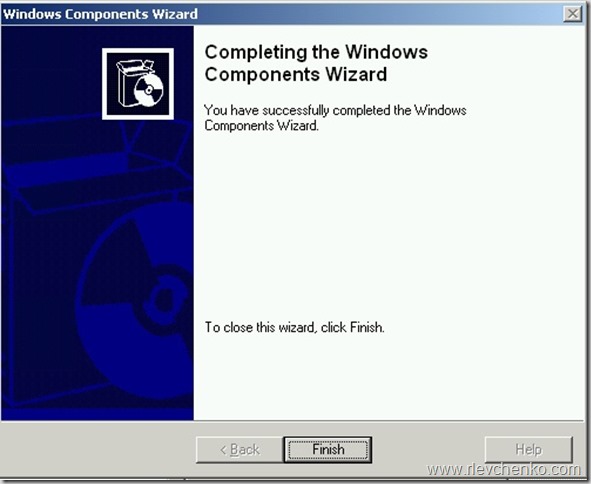

We successfully completely removing CA services, click Finish

ca_transfer_2003_to_2008_12

Step 3. CA services installation on the target server

Server Manager –> Add or Remove Roles > Active Directory Certificate Services

ca_transfer_2003_to_2008_13

ca_transfer_2003_to_2008_14

Certification Authority + Certification Authority Web Enrollment

ca_transfer_2003_to_2008_15

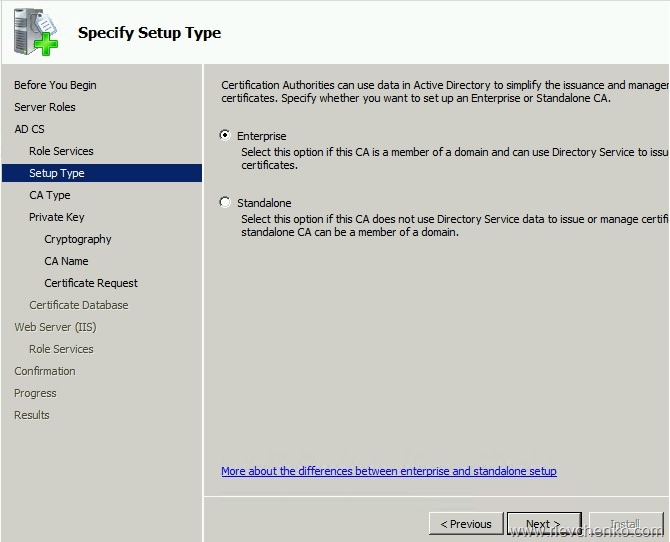

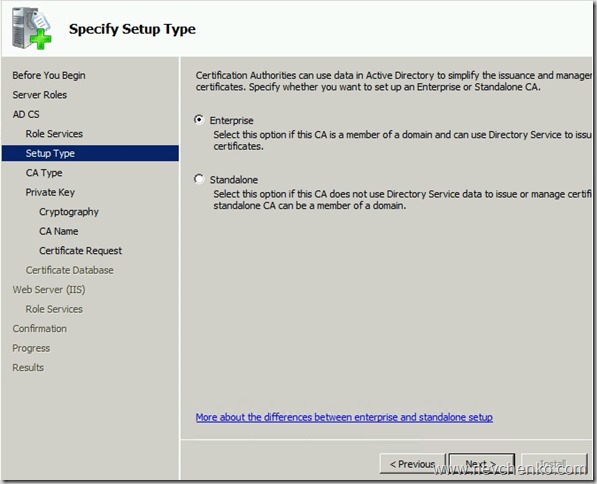

We want to set up  an Enterprise CA

ca_transfer_2003_to_2008_16

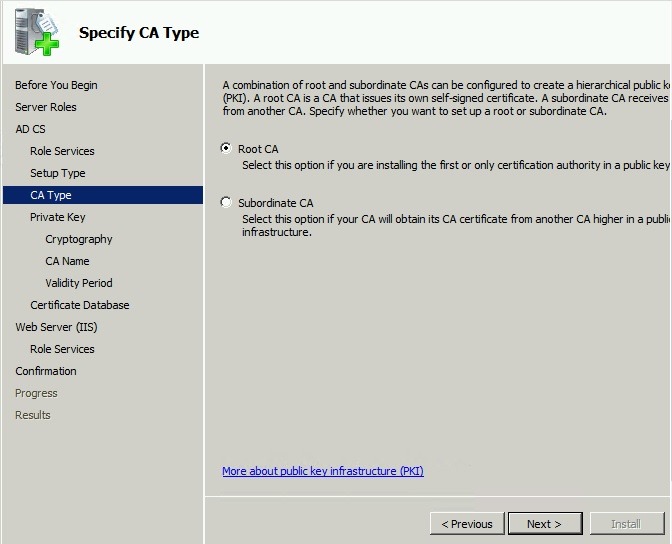

We are installing the Root CA

ca_transfer_2003_to_2008_17

We already have the Private Key (шаг 1),so Use Existing Private Key

ca_transfer_2003_to_2008_18

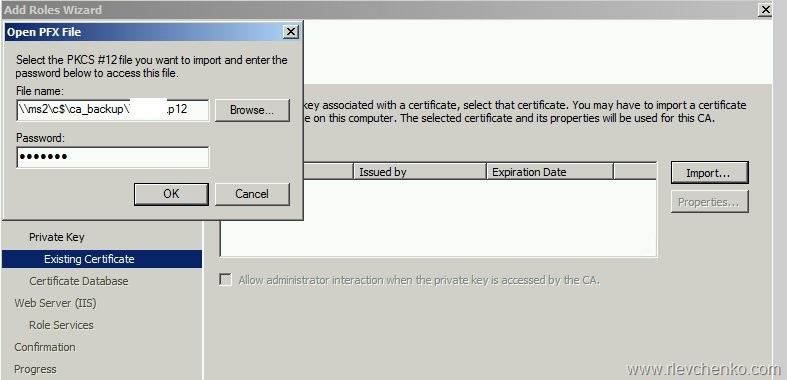

Locate your PFX-file (step 1) and import one

ca_transfer_2003_to_2008_19

ca_transfer_2003_to_2008_20

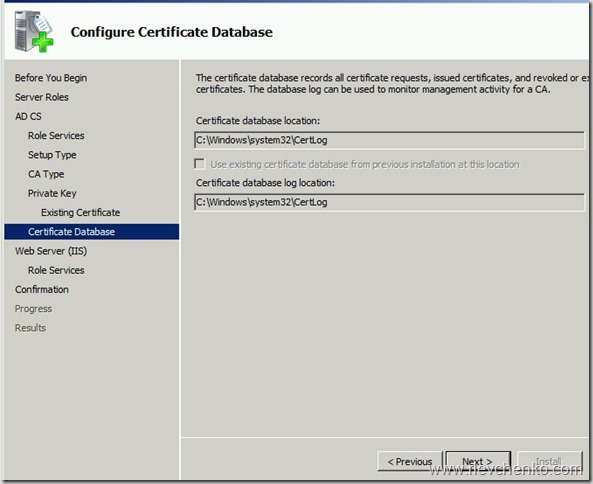

Just click Next

ca_transfer_2003_to_2008_21

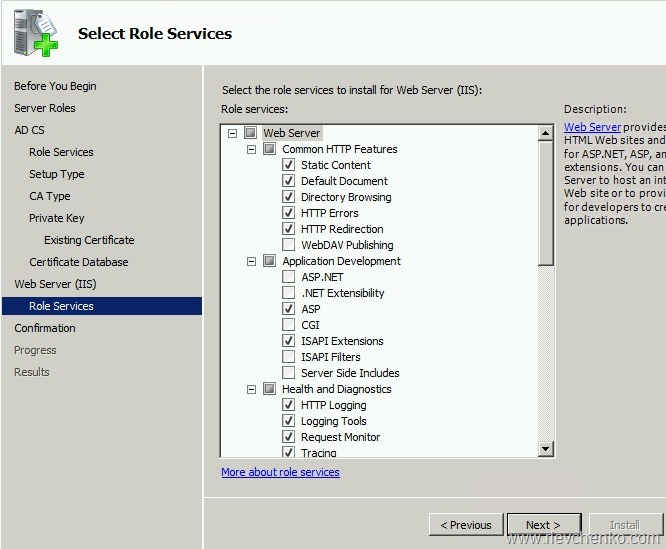

Leave it by default

ca_transfer_2003_to_2008_22

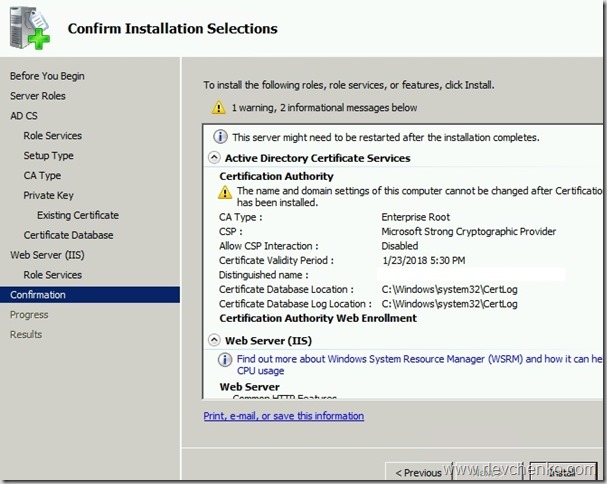

Review the summary and click Install

ca_transfer_2003_to_2008_23

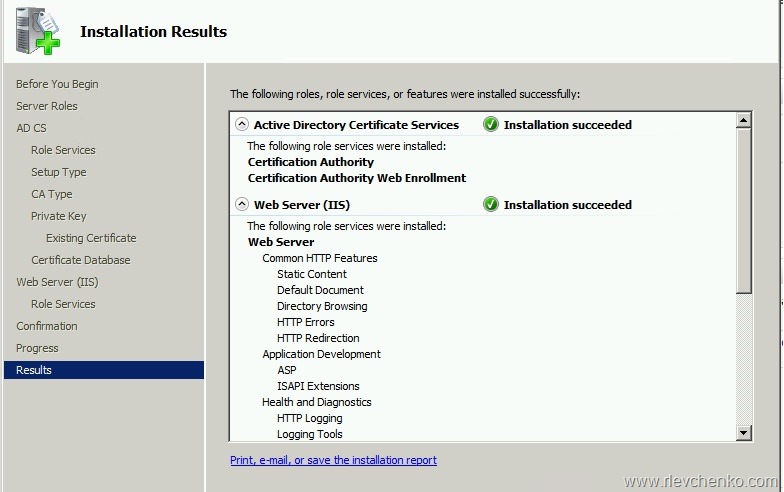

Verify that roles were installed successfully

ca_transfer_2003_to_2008_24

Шаг 4. Restore CA on the target server

Start – run (win+r) – certsrv.msc

ca_transfer_2003_to_2008_25

Right click on the  CA name –> All Tasks –> Restore CA

ca_transfer_2003_to_2008_26

Stop CA services = click OK

ca_transfer_2003_to_2008_27

Click Next

ca_transfer_2003_to_2008_28

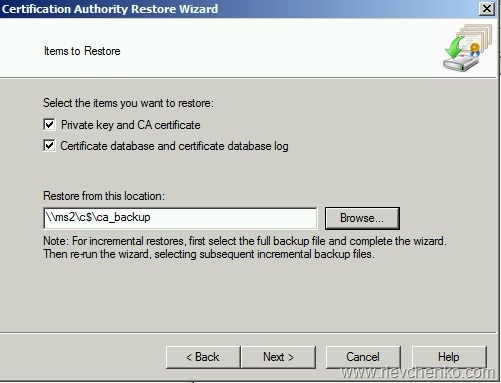

Insert path to files from step 1, click on checkboxes Private key.. и Certificate database

ca_transfer_2003_to_2008_29

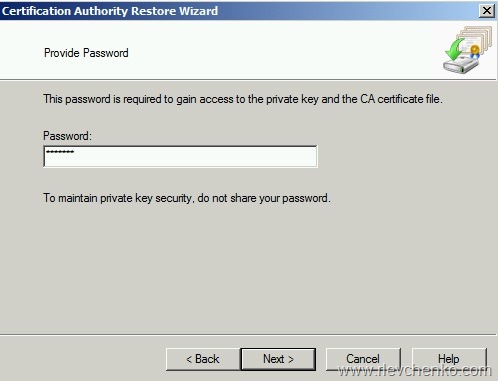

Type your password from step 1

ca_transfer_2003_to_2008_30

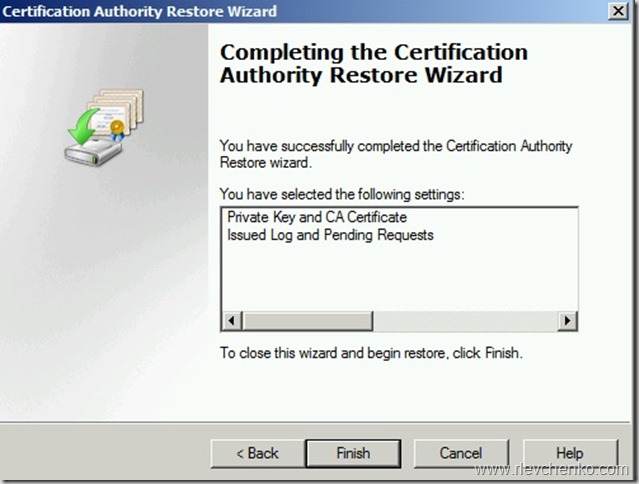

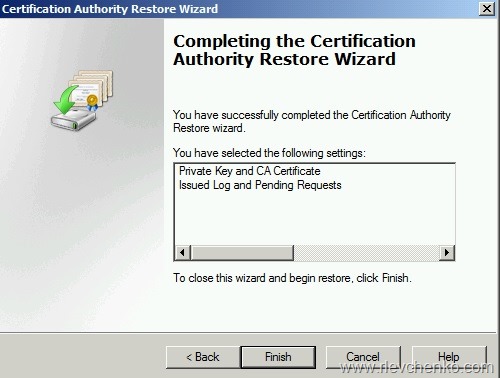

Review the summary and click Finish

ca_transfer_2003_to_2008_31

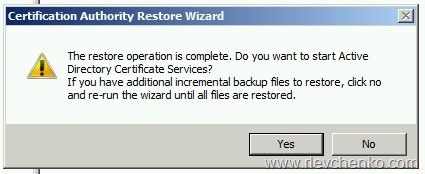

We are not going to start CA services yet. Click “NO”

ca_transfer_2003_to_2008_32

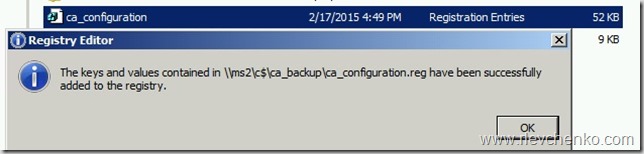

Run ref file and add CA configuration

ca_transfer_2003_to_2008_33

Optionally

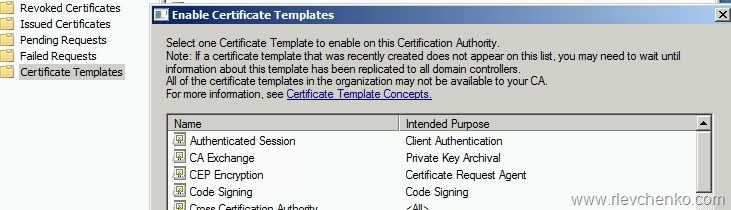

Reissue Certificate Templates

certsrv.mmc –> certificate templates- right click –> new –> certificate template to issue

choose your template and click OK

ca_transfer_2003_to_2008_34

Verify CA migration:

https://technet.microsoft.com/en-us/library/ee126164(v=ws.10).aspx

Additional links:
