Quick overview of Intel NUC


I remember when my parents bought for me the first computer in early 2000s (dot-com era). It was based on Duron 1.3 Ghz (Spitfire), 256 Mb RAM + IDE disks, of course. You may or may not be surprised that it still works properly side-by-side with Windows XP.

But technology is like a time, doesn’t want to wait.  There comes a moment in every PC’s life when it must be replaced or upgraded due to incompatibility with modern applications. For instance, Windows 8 requires SSE2 CPU instructions and even Skype won’t work without them (SSE2 is a requirement for video calls).

Therefore, we need to search for some replacement options. It may be a simple upgrade or purchasing a brand new PC.  My choice is the second, obviously. So, please welcome Intel NUC.

What’s NUC?

Intel New Unit of Computing or  more simply NUC is a 4×4-inch mini-PC (barebone) and is about 1.5-2 in. thick (thickness depends on model) with built-in CPU (from Atom/Celeron to Core i7), integrated graphics, customizable board for storage and memory.

Furthermore, almost all models also come with integrated Wi-Fi, Bluetooth modules, card readers and even with dual microphones.

NUC is completely fanless and noiseless (except of Skull Canyon NUC series which is oriented to gamers). Some of NUC kits can also be shipped with the pre-installed SSD and memory. List of currently available kits is here .

The number following the “NUC” indicates it’s generation. The latest NUC generation is 7 for now. You need to check launch date and gen id in description of each kit before buying. Example: NUC6CAYH belongs to the Intel NUC 6th generation and launched at Q4’16

Some NUC analogs: Gigabyte BRIX , Asus VivoMini series

My NUC

Well, It’s not mine anymore ‘cause I bought it to my parents Улыбка. Anyway, I spent 3 days working with NUC6CAYH and really enjoyed it. It’s definitely what I searched for.

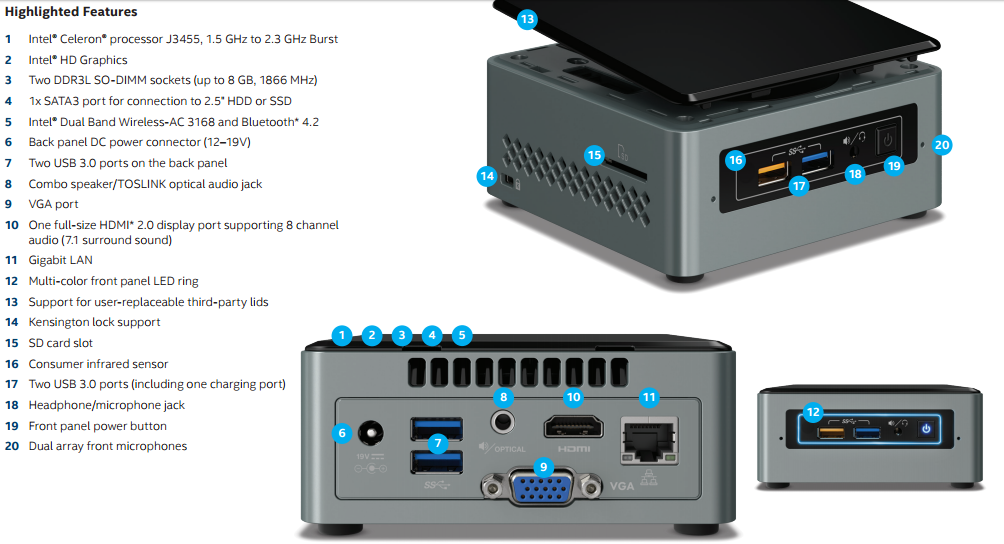

  • VGA port is on board (monitor is good but doesn’t support DVI and etc),
  • dual array microphones (no additional costs for headphones),
  • noiseless and with the latest Apollo Lake Celeron J3455 CPU

Recommended price for this kit is just 139$. Additionally, don’t forget to count SSD (m.2 or sata) and memory.

Be aware that SSD must have up to 9.5 mm thickness and memory should be verified for compatibility at the manufacturer’s official site

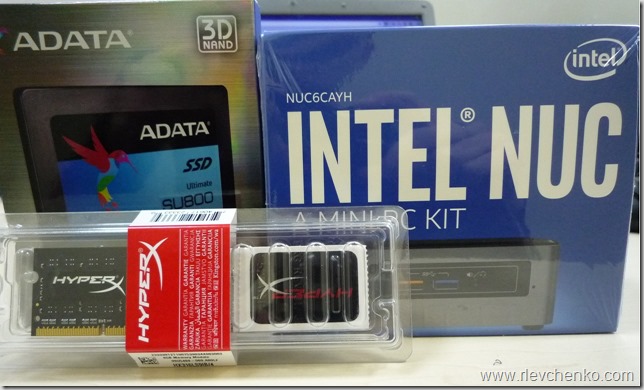

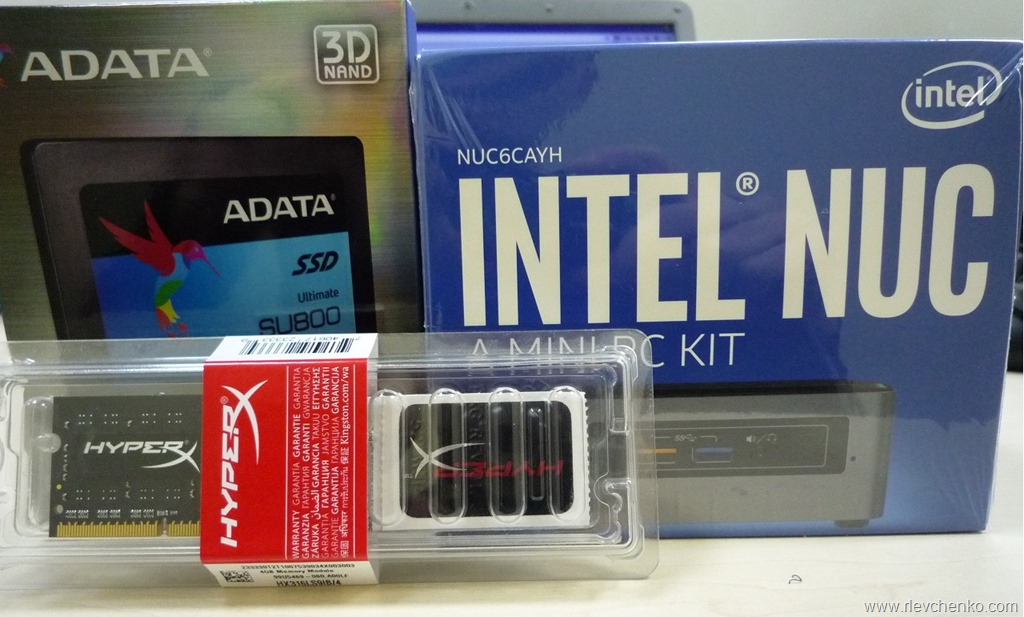

I bought and installed 1 x A-Data SU800 with 3DNAND and 1 x Kingston HyperX Impact with good timings (I don’t need dual-channel yet)

So my costs totalled approximately 270$


Installation is quite simple and takes 2 minutes (use instructions that come with your NUC). Actually, you just need to unfasten 4 screws and place ssd, memory. No cables required.

intelnuc

NUC’s bios is not advanced and it usually does not require any configuration. Just leave default settings

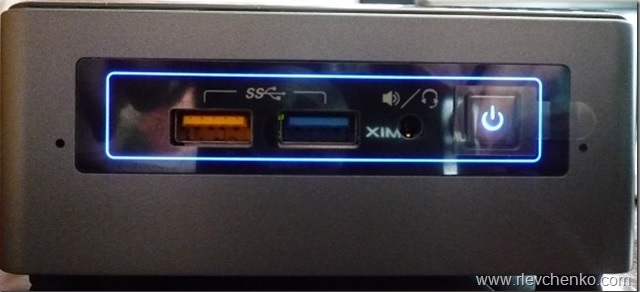

TIP: NUC comes with blue indicator color for HDD activity and power leds. You can change them in bios in power section.

Install OS as usual (my NUC supports only Windows 10 x64). It took me about 5-6 minutes to get Windows 10 installed.

Then upgrade your NUC using the special bundle which is available at Intel support site in order to get the latest bios and drivers.


Test results

CPU

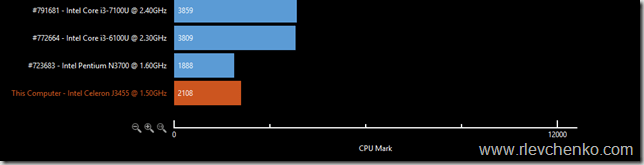

As you can see, it’s better than Pentium N3700 but still far from NUC Kits based on Core i3

cpu test results intel nuc

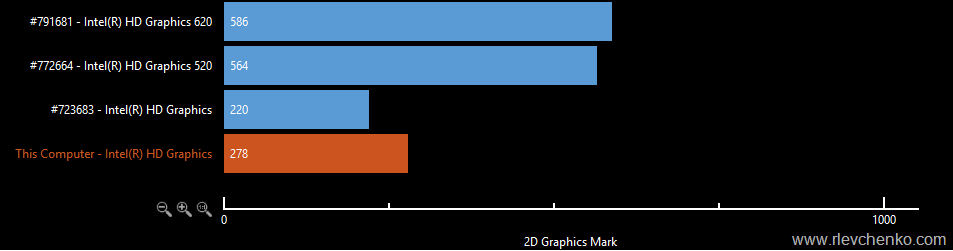

2D Graphics

gpu test results intel nuc

3D Graphics

Well, there is a big gap between my Intel Graphics HD 500 and HD 520 installed on kit with Core i3.

But anyway, who is going to buy them for games…

gpu 3d tests results intel nuc

Memory

It’s not fair to compare DDR3 and DDR4 so let’s skip these results. But the fact is that HyperX Impact is better than standard RAM (see graph)

memory test results intel nuc

Storage

Great result for this SSD. It’s inexpensive and has 3DNAND. I’d definitely recommend one.

Overall result

My kit is not a competitor to kits 6th and 7th generations based on Core i3 CPUs, as expected. But has a great advantage over NUCs with Pentium N3700 or lower (CPU/GPU tests).

Average temperature of CPU and SSD is not high and ranged between 52-54 C. Maximum levels were during testing ~ 64C (CPU) and 54 (SSD) and I could even work seamlessly.

Windows boot time is about 7 seconds (including automatic logon).

test results intel nuc

TIP: I had some issues with screen flickering. The reason was HD Graphics driver. I  rolled back driver’s version to 21.20.16.4354 and it helped.

nuc

NUC is one of the most interesting mini-PC/barebone with a wide range of available configurations. It’s a real mini-sized, noiseless and can be mounted to the back of your monitor (NUC comes with VESA mounting kit). Hence, it’s an ideal solution for desktop replacement, kiosks (where size does matter) or home servers for streaming media content with the consumer IR support to control power,volume, channels remotely.

Will we see enterprise servers with such sizes in the future? 🙂

Who knows..

Thanks for reading!
